Sesame Peanut Sunflower Oil Press Machine Professional Oil Press machine

Classification:

oil press

Complete set of rice mill from 20 tons to 200 tons per day.We located in the Xiaogan city ,Hubei province,China.

Tel：

186 7405 7589

Inquiry

Details:

Product Application

This screw oil press machine is widely used for press: peanut, soybean, sunflower, rapeseed, cotton seed, sesame, corn germ, walnuts, almonds, mustard, camellia, etc.

Product Specifications

Model	YJY-Z150	YJY-Z200	YJY-Z260	YJY-Z300
Capacity(24h)	2.5 T/D	3.5 T/D	5 T/D	5.5T/D
Spindle speed	36-43RPM	36-43RPM	36-43RPM	36-43RPM
Main motor power	5.5KW	7.5KW	11KW	11KW
Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Filter type	Centrifugal/Compressed/Disk	Centrifugal/Compressed/Disk	Centrifugal/Compressed/Disk	Centrifugal/Compressed/Disk
Weight	520KG	730KG	900KG	950KG
Dimention (mm)	15509501800	18808801800	188010401970	20309801950

Model	YJY-Z320A	YJY-Z330-2	YJY-Z350	YJY-Z450
Capacity(24h)	7.5 T/D	8.5 T/D	10T/D	12.5T/D
Spindle speed	36-43RPM	36-43RPM	36-43RPM	36-43RPM
Main motor power	15 KW	15KW	18.5KW	22KW
Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Filter type	Centrifugal/Compressed/Disk	Centrifugal/Compressed/Disk	Centrifugal/Compressed/Disk	Centrifugal/Compressed/Disk
Weight	970KG	1050KG	1180KG	1400KG
Dimention (mm)	20309801950	22009801920	219011801950	23301180195

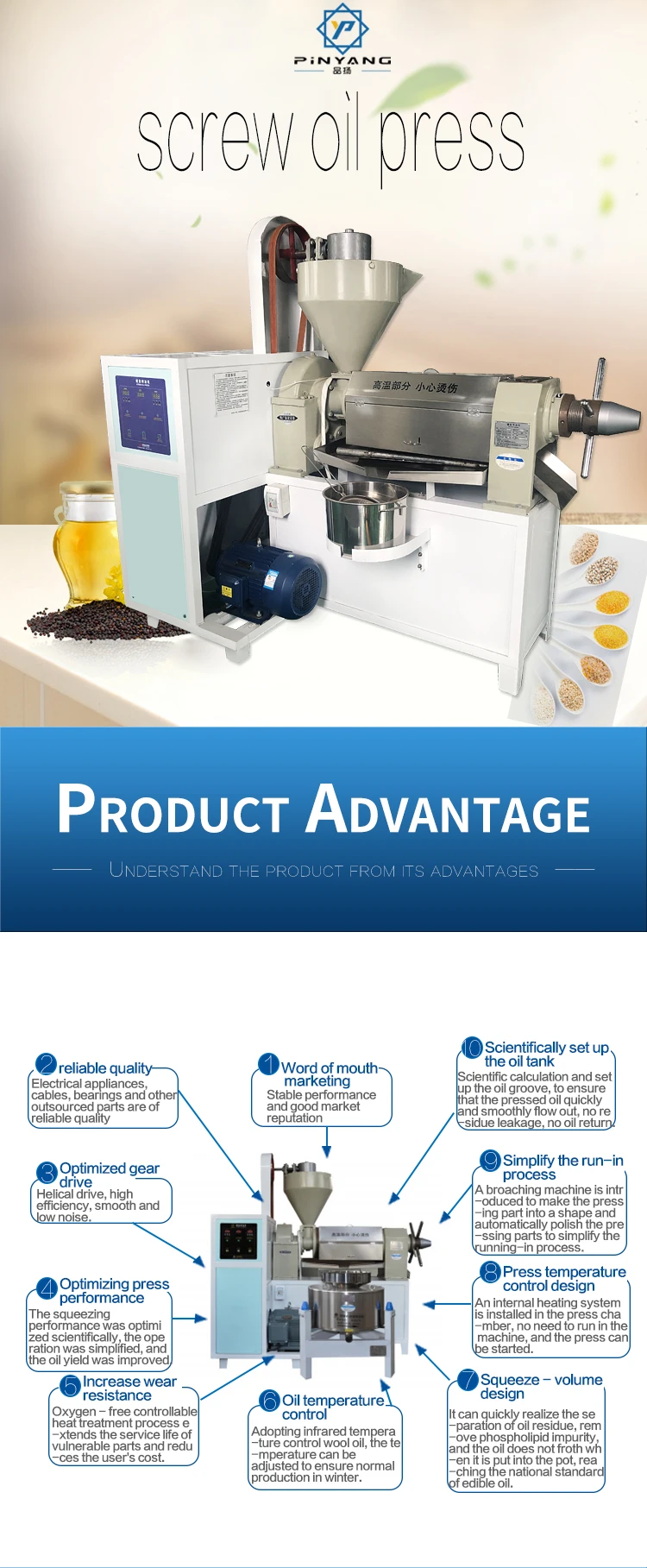

Main Features

1) Infrared preheating: Set the infrared heating plate, preset the crude oil temperature, can work under different temperature conditions.

2) Pressing performance: Hot press, finished at once. cold press and hot press both ok.

3) Configure the il refining machine can quickly remove the phosphoric impurities; oil clear and no foam; configure disc filter, remove the crude oil impurities convenient and quickly.
