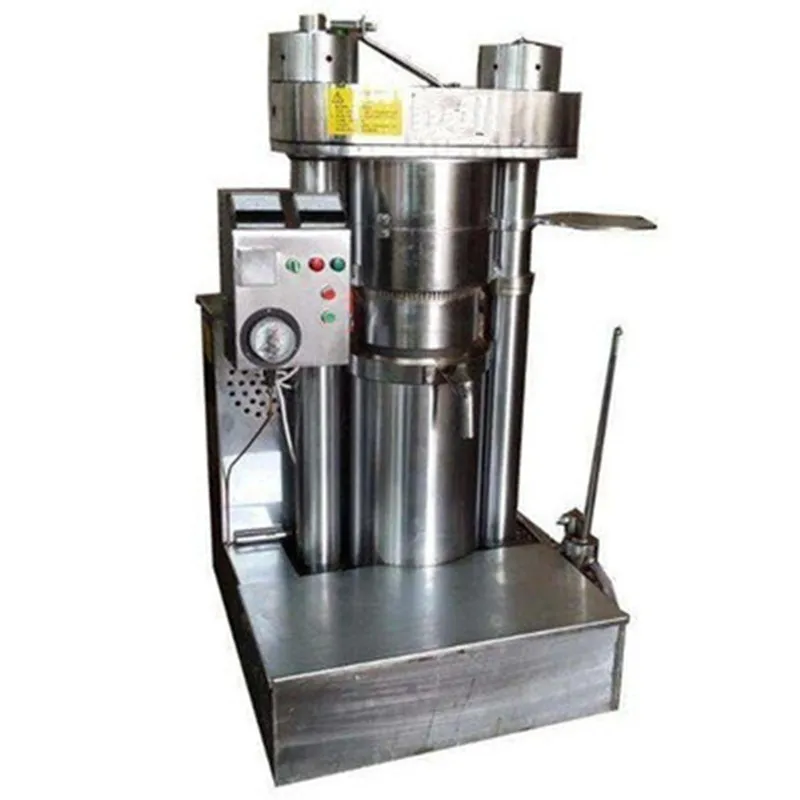

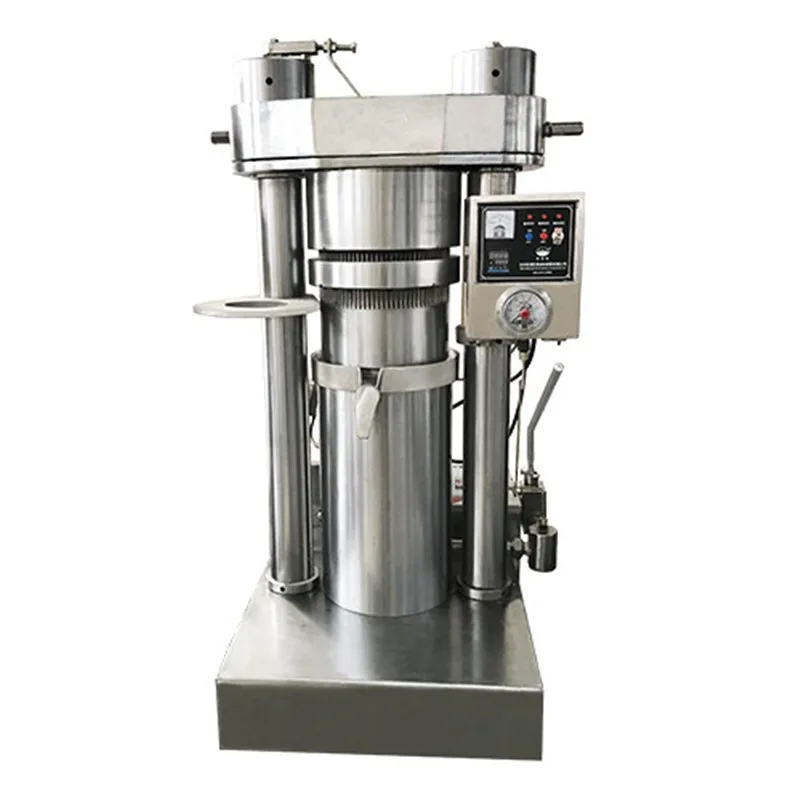

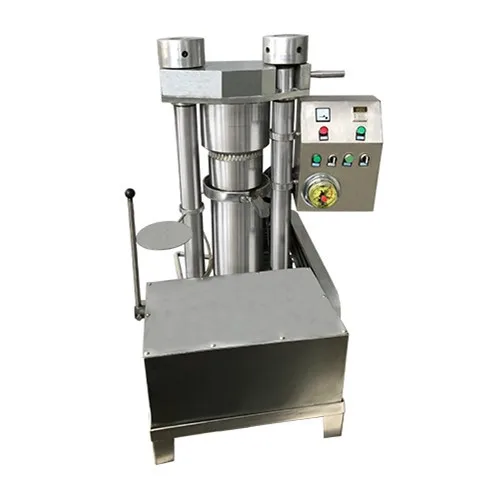

hydraulic sesame oil press machine cold press hydraulic oil press machine

Classification:


Complete set of rice mill from 20 tons to 200 tons per day.We located in the Xiaogan city ,Hubei province,China.


Details:


Product Application

Simple structure, strong maintainability make this Hydraulic oil press very popular in Afria, South America, Asia.

The hydraulic oil press is widely used for most raw materials, such as soybean, sesame, peanut, corn germ, sunflower seed, cocoa bean, rape seed, palm kernel, etc.

Model
ZY3.5
ZY7
ZY9
ZY11
ZY14
ZY16
Capacity(batch/15 minuts)
3.5kg/batch
7kg/batch
9kg/batch
11kg/batch
14 kg/batch
16 kg/batch
Motor   power
2.2kw
2.2kw
1.2kw
1.5kw
1.5kw
1.5kw
Power supply
380V
380V
220/380V
220/380V
380V
380V
Weight
600KG
800KG
1100KG
1400kg
1500kg
1600kg
Max pressure
55Mpa
55Mpa
60Mpa
60Mpa
60Mpa
60Mpa
Size
950*850*1250mm
1000*900*1680mm
1000*970*1420mm
1150*1000*1570
1150*1050*1570mm
1200*1150*1550mm
Our Service



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

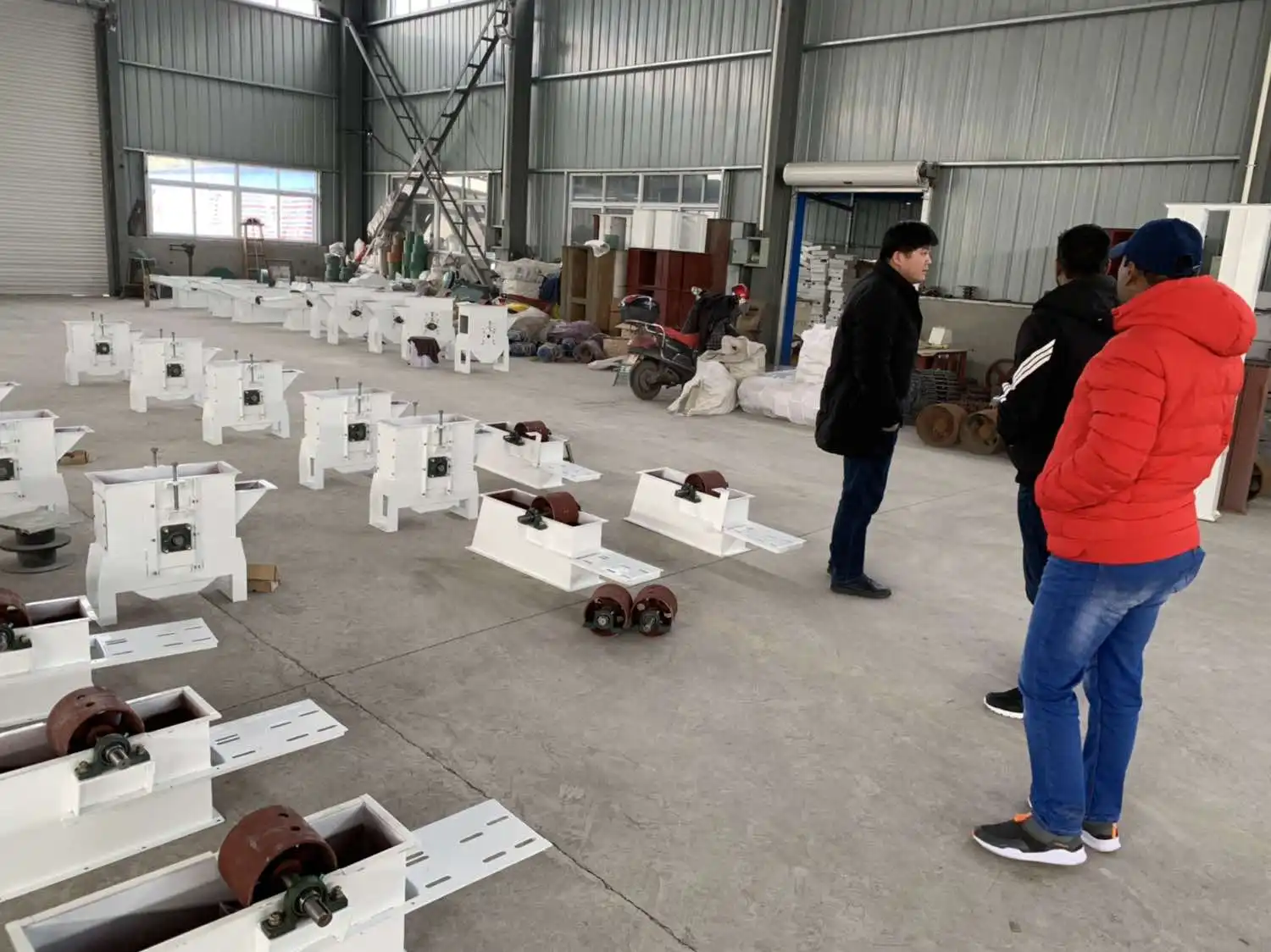

* View our Factory.



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
